This product is: No Longer Available
Model: BLD151T

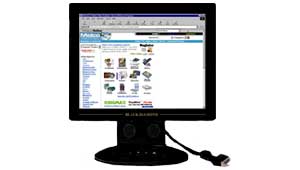

Black Diamond BLD151T Monitor
Black Diamond 15" TFT LCD Monitor with Speakers
BDT Code: 120912
The Black Diamond BLD151T is a perfect LCD monitor for people wanting a stylish solution to saving desk space. If you want a 15 inch TFT monitor offering high resolution images with a low price tag, go no further. Available in metallic or pure black only.
Black Diamond BLD151T Metallic Black 15" TFT-LCD with Speakers *LCD size 15.1"/38.4cm *Display size 307.2H x 230.4Vmm *Distortion free TFT Active Matrix screen *Maximum resolution 1024x768.

Product Brochure
(637Kb) PDF Format.

 BLD151T Specifications
· Panel Active matrix color TFT LCD · Screen size 307.2 x 230.4mm
· Pixel pitch 0.300(H) x 0.300(W)mm · Max. pixel rate 100MHz
· Display mode Full screen: 640 480, 800x600 & 1024x768 · Horizontal frequency 30 ~ 60KHz
· Vertical frequency 56 ~ 75Hz · Number of colors 262 or 144
· Lamp life 25000 hrs (min.) · Input signal analog RGB (0.7Vp-p, 75 ohms)
· Plug and play DDC1, DDC2B · Compatibility IBM PC
· Input terminals 12V/3 adapter, 15pin D-sub, Optional USB Hub · OSD commands Yes
Brightness, contrast, color (9300, 6500, user mode) H/V position, OSD H/V position, phase, noise, display size, language, auto-tune, save, recall, exit
· OSD languages Multi-languages · User controls Power key, up/down/select key
· Power management VESA DPMS · Power consumption-working 36 Watts (max)
· Power consumption-standby 5 Watts · AC input adapter AC100 ~ 240V, 50 ~ 60Hz
· Operation temperature 0 ~ 40C · Operation humidity less than 85%
· Accessories User manual, adapter, power cord, VGA cable · Optional USB Hub 1 upstream & 4 downstream ports

 BLD151T Documents & Downloads:
 Data Sheet
 Data Sheet (pdf)

All prices are subject to normal Black Diamond Technology Limited Terms and Conditions. Stock is subject to availability. Retail prices include GST and are indicative only. All BDT products are sold through authorised dealer networks only.
